What Is a Steam Engine? How Does It Work?

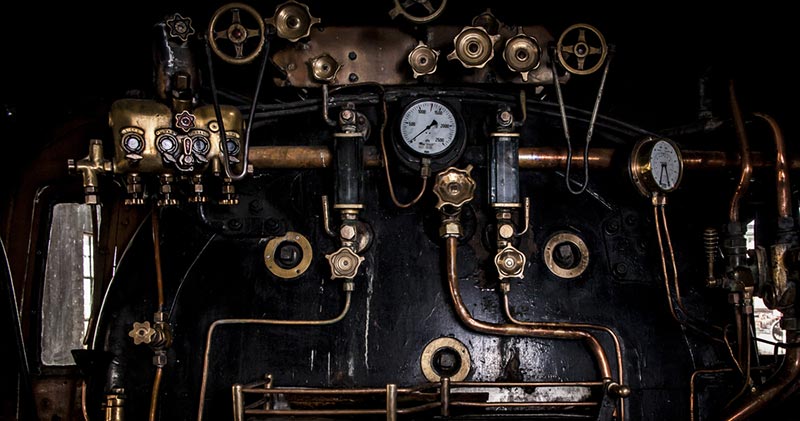

engine room on steam train


Steam engines are fascinating pieces of technology. These engines are the reason that the Industrial Revolution was possible, and they continue to be used in a variety of settings today. But how do steam engines work?

The basic principle behind a steam engine is that it uses the expansion of steam to drive a piston. But there is so much more to it than that! In this article, we’ll take a closer look at how steam engines work, exploring the individual components and how they fit together.

machinery divider

How Does It Work?

The working of a steam engine is based on the fact that water vapor expands when it is heated. The expansion of the water vapor causes the piston to move, which in turn drives the engine.

The boiler of the engine constantly heats up water to create steam. The steam is then allowed to enter the cylinder through a valve. The pressure of the steam pushes against the piston, causing it to move. As the piston moves, it turns the crankshaft, which drives the wheels of the vehicle.

When the steam expands and pushes the piston, it also cools down. The cooled steam is then condensed back into the water in the condenser. The water is then pumped back into the boiler to be heated again, and the cycle repeats itself.

The efficiency of a steam engine depends on how well the boiler can heat up the water and how efficiently the condenser can cool down the steam.

If the boiler is not able to heat up the water quickly enough, or if the condenser is not able to cool down the steam efficiently, the engine will not be very efficient.

The efficiency of a steam engine can also be affected by the pressure of the steam. The higher the pressure of the steam, the more efficient the engine will be. However, if the pressure is too high, it can cause damage to the engine.

steam engine
Image Credit: LittleVisuals, Pixabay

What Are the Different Types of Steam Engines?

There are two main types of steam engines: reciprocating and steam turbines. Both types use steam to power a piston or turbine. However, they have some significant differences that affect how they work.

Reciprocating Engines

The reciprocating steam engine is the most common type of steam engine. You can find this type of engine in many large ships, locomotives, and stationary pumps.

A reciprocating steam engine has a cylinder with a piston inside it. The piston connects to a crankshaft by a connecting rod. Then, as the piston moves up and down in the cylinder, the connecting rod turns the crankshaft. This action transforms the piston’s linear motion into the crankshaft’s rotary motion. The crankshaft, in turn, powers the wheels of the ship or train.

For this process to work, there must be a seal between the piston and the cylinder walls. This seal is called a “packing.” The packing prevents steam from leaking past the piston and escaping from the cylinder.

The reciprocating steam engine is a very old technology. It was first used in the 17th century, and it remained the primary type of steam engine until the 19th century. Even though it is now considered a “historic” technology, there are still many reciprocating steam engines in use today.

V-1710-89 reciprocating engine
V-1710-89 reciprocating engine (Image Credit: Motokoka, Wikimedia Commons SA 4.0 International)

Steam Turbines

The steam turbine is the heart of the ship’s propulsion system. Marine steam turbines are also used in electrical power plants. The basic operation of a steam turbine is similar to that of a reciprocating engine. In a reciprocating engine, such as a piston engine, the expanding gasses push on the pistons, which in turn rotate the crankshaft. In a steam turbine, the expanding gasses push on the blades of a rotor, which is attached to the shaft that drives the propeller.

Steam turbines come in different sizes and shapes, but all operate on basically the same principle. The most common type of marine steam turbine has three stages: high pressure (HP), intermediate pressure (IP), and low pressure (LP).

The HP stage receives steam from the boiler at a pressure of around 3,000 pounds per square inch (psi). The IP stage receives steam from the HP stage at a pressure of around 1,000 psi. The LP stage receives steam from the IP stage at a pressure of around 500 psi.

Each stage has a set of blades mounted on a rotor. As the steam passes through the stages, it expands and pushes on the blades, causing the rotor to turn. The turning shaft is connected to the propeller, which propels the ship through the water.

Most marine steam turbines are “reheat” turbines. This means that after passing through the LP stage, the steam is sent back to the boiler to be superheated before entering the HP stage. This increases the efficiency of the turbine by allowing the steam to expand more in the HP stage.

Where Is It Used?

Though mostly out of use now, steam engines were once an integral part of many industries. They were used to power trains, boats, and early automobiles. Today, you can still see them in action at some old-fashioned railway parks and in certain types of antique vehicles.

In addition, the United States Navy still uses steam engines to power the turbines that move its aircraft carriers.

Westinghouse steam turbine
Westinghouse steam turbine (Image Credit: Joe Mabel, Wikimedia Commons CC SA 3.0 Unported)

machinery divider

Advantages of Steam Engines

The steam engine is notable for having many key benefits that made it an essential invention during the Industrial Revolution. These benefits include:

  • Steam engines are relatively easy to operate and maintain.
  • Steam engines are very versatile and can be used for a variety of tasks, including powering ships and trains.
  • Steam engines are very efficient, meaning that they use less fuel than other types of engines.
  • Steam engines emit no pollutants, making them environmentally friendly.

It’s easy to see why the steam engine was such an important invention. Thanks to its many advantages, the steam engine helped to power the Industrial Revolution and spur economic growth.

Disadvantages of Steam Engines

Despite the advantages outlined above, steam engines have some disadvantages as well. For example:

  • They require a constant source of water, which can be difficult to obtain in some areas.
  • Steam engines can be dangerous if they explode, which can cause serious injury or death.

Given these drawbacks, it’s easy to see why steam engines have been largely replaced by more modern technologies. However, they still have a place in history and continue to be used in some applications today.

machinery divider

Frequently Asked Questions (FAQs)

How does a steam engine work?

A steam engine is a machine that converts the heat energy of steam into mechanical energy. The steam engine uses the force of steam to push a piston back and forth in a cylinder. This motion can then be used to power a variety of machines.

What are the different types of steam engines?

There are two main types of steam engines: reciprocating and turbine. Reciprocating engines, such as those found in trains, use pistons that move back and forth in cylinders. Turbine engines, on the other hand, use rotating turbines to power their machinery.

What is the history of the steam engine?

The first recorded instance of a steam engine was in the 1st century AD when the Hero of Alexandria (a Greek mathematician and engineer) invented the aeolipile. This early machine used steam to power a ball that rotated on an axis.

However, it wasn’t until the 17th century that the first practical steam engines were developed. Thomas Savery and Thomas Newcomen are credited with inventing these early machines, which were used to pump water out of mines.

How do steam engines use energy?

Steam engines use heat energy to create mechanical energy. The heat energy is supplied by a boiler, which uses coal, oil, or another fuel to heat water into steam. The steam then powers the engine’s pistons or turbines.

machinery divider


Steam engines have a long and storied history and have been instrumental in powering everything from trains to ships to factories. Although steam engines have been replaced by more efficient engines in many applications, they are still widely used in power generation and other industrial settings.

Understanding how a steam engine works is a great way to appreciate the engineering marvels of the past and present.
